Fender Concert II
Model/Circuit Number: Concert 112, Concert 210, Concert 410, Concert Top
Years of Production: 1982 – 1987
Era: Paul Rivera
Configuration: Combo, Head (83-87)
Controls: Black, forward facing w/ white labels
Knobs: Black skirted w/ chrome center, numbered 1 – 10
Faceplate:

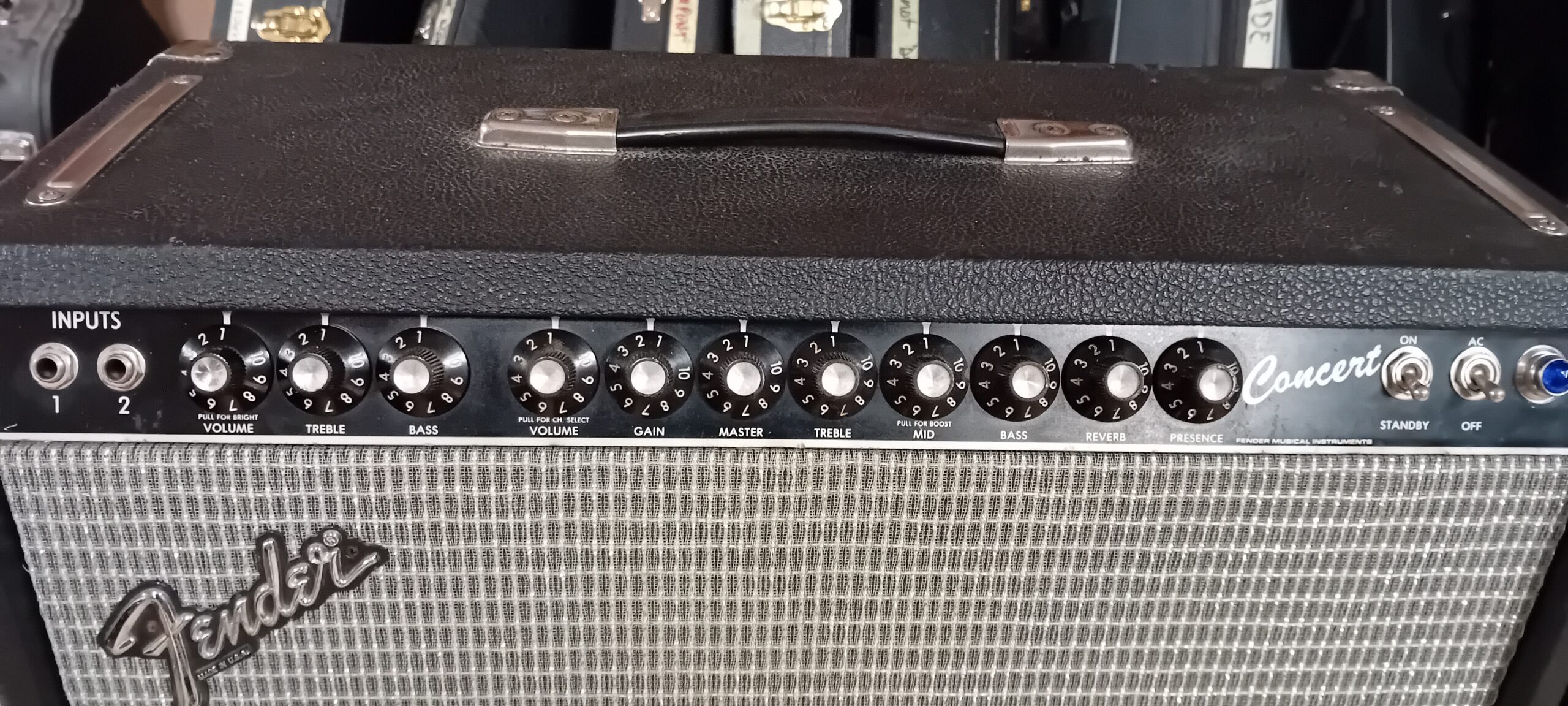

Front: In 1, In 2, Vol (Pull for Bright), Treb, Bass – Vol (Pull for Ch Select), Gain, Master Vol, Treb, Mid (Pull for Boost), Bass, Reverb, Presense – Standby Sw, Power Sw, Pilot Lamp

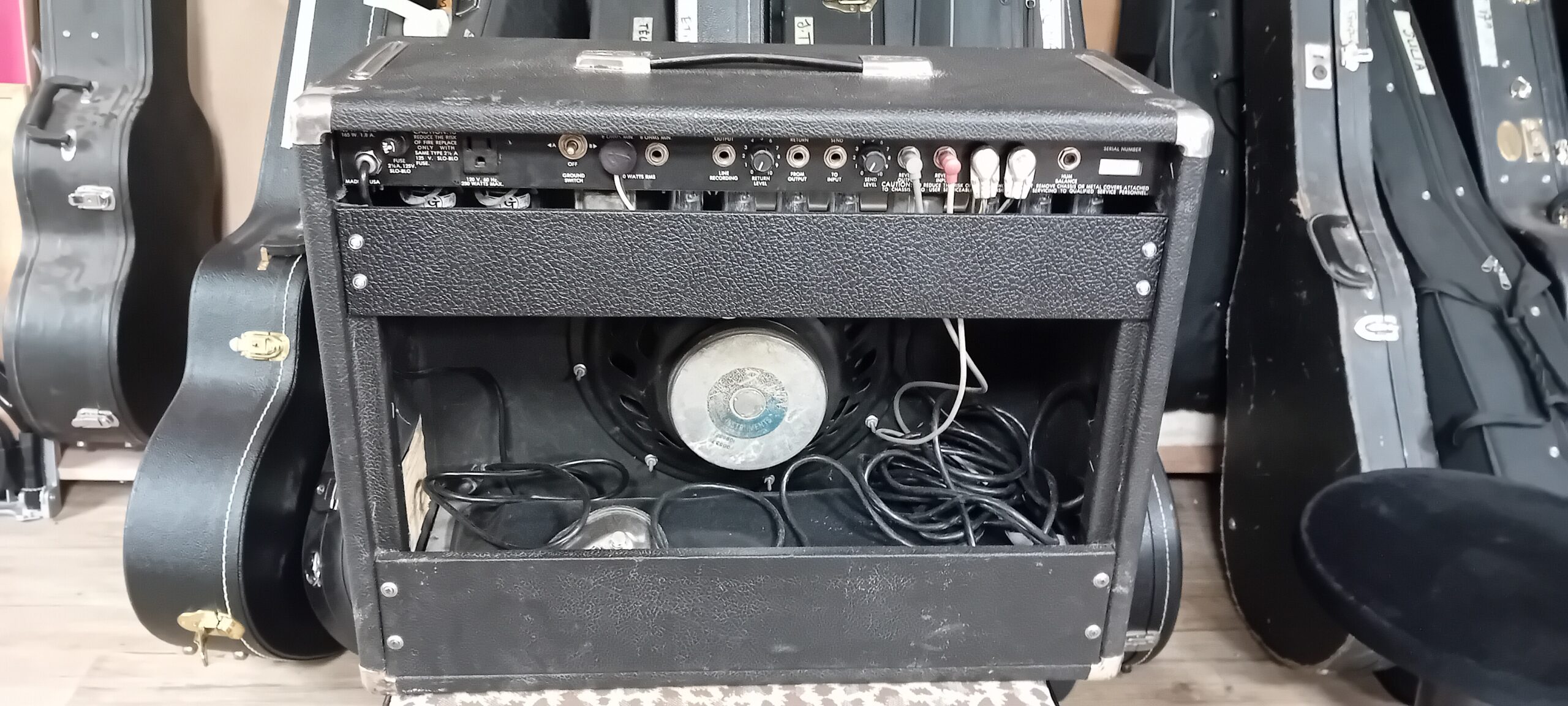

Rear: Fuse (2 1/2A), AC Outlet (Grounded, Polarized), Ground Sw (A/Off/B), Speaker (1/4”), Ex Speaker (1/4”), Line Out (1/4”), Return Level, Return (1/4”), Send (1/4”), Send Level, Reverb Out (RCA), Reverb In (RCA), Pedal Plain (1/4”), Pedal Red (1/4”), Hum Balance
Cabinet:
Dimensions: Head: 23 5/8″ x 10 7/8″ x 11 1/4″, 1×12′ & 2×10: 23 5/8″ x 18 1/4″ x 11 1/4″, 4×10 Combo: 23 5/8″ x 25 3/8″ x 11 5/8″
Hardware: Large Chassis Straps 5 5/8″
Handle: Black Strap
Feet: Glides
Corners: Chrome Corners with Lip
Tolex/Tweed: Black Tolex
Grill Cloth: Black White Silver
Logo: Chrome & black script “Fender® Made in USA” w/o tail
Weight: Head: 39 lbs. 1 x 12: 57 lbs. (25.8 Kg) 2 x 10: 61 lbs. 4 x 10: 72 lbs.
Speaker:
Size: 1×12, 2×10 and 4×10
Impedance: Head: 8 Ohms 1 x 12″: 8 Ohms 2 x 10″: 4 ohms 4 x 10″: 4 ohms
Model: (For more info, check out the Jensen Replacement Speakers)
Effects: Reverb, Channel switching
Watts: 60 watts
Tubes:
Pre amp: 7025, Reverb Driver: 12AT7 Reverb Recovery: 7025 Effects Loop: 7025, Phase Inverter 12AT7 (long tailed)
Power: 2 x 6L6GC
